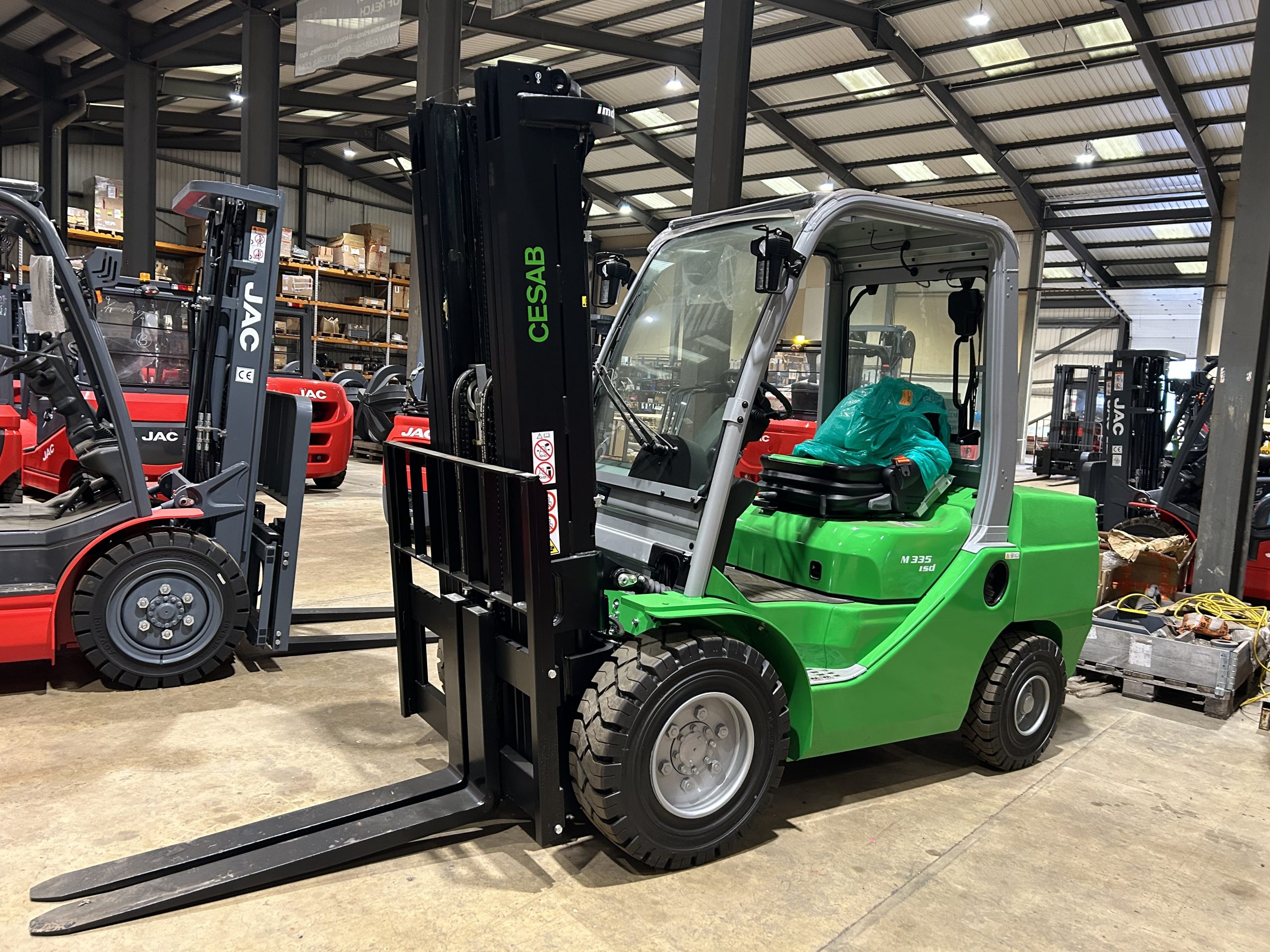

The CESAB M335DV is a robust 3.5-tonne diesel counterbalance forklift engineered for high-capacity lifting and intensive outdoor work cycles. As a flagship model in the M300 range, the “DV” designation identifies its high-performance Torque Converter transmission, which provides smooth, automotive-style driving and exceptional power delivery over long distances.
Nominal load capacity: 3 500 kg at 500 mm centre of gravity
Centre of gravity: 500 mm
Turning radius: 2.49 m
Standard lift height (Simplex/standard mast): 2.97 m
Travel speed with load: 19 km/h
Travel speed without load: 19.5 km/h
Hoisting speed with load: 0.42 m/s
Hoisting speed without load: 0.45 m/s
Engine type: 1ZS (V) diesel
Engine power: 41 kW
Displacement: 1.795 L
Number of cylinders: 3
Max torque: 200 Nm
Emission level: Stage V
